Invisible gremlins in translation!

Zero-width characters can induce madness in some text processing and translation environments.

From time to time in the course of more than two decades of commercial translation work, I would encounter some strange phenomena in the text I worked with.

• Search functions failed to find a word even when I could see it right in front of me on the screen.

• Expected automatic glossary lookups failed to happen.

• Full translation memory matches of the source text were shown as fuzzy matches, and not even “high fuzzies”.

• Simple regular expressions would fail to perform as expected for some groups of characters but worked fine for others.

• Attempts to select a word by double-clicking resulted in only a substring of the word being highlighted. But if I overwrote the word, the subsequent selection behavior was normal.

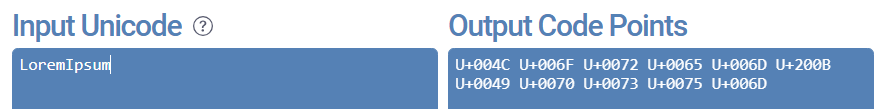

One day I copied such a “troubled word” onto a page for converting character strings into Unicode code points.

And when I compared the output code points to the number of letters I could see, I found there were more “code points”. I had an extra, unfamiliar code U+200B in the list. I looked that up and saw that it was a zero width space.

These little gremlins weren’t found in every text, but once I was aware of what they were, I realized that many past problems I had experienced, some of which allowed translation errors to slip through, occurred because of these invisible characters. Well, invisible in some environments at least as you’ll see below.

Stanislav Okhvat provides a “Pre-flight Checker” utility in his Transtools+ suite which detects and eliminates these gremlins in Microsoft Word files before they can inflict mischief on a project. But if these characters occur in other file formats, you may need other tools or techniques for a cleanup.

Strange spelling hint behavior in Microsoft Word due to the presence of zero-width spaces

Some environments can be configured to show these usually invisible zero-width characters.

Text as seen in Microsoft Word with non-printing characters made visible

Text seen in Notepad++ with non-printing characters shown

The response to zero-width spaces or other zero-width characters is different in various translation environment tools. In memoQ (as of the current version 11.2), they are not seen at all, even when the display of non-printing characters is enabled, though unexpected breaking of words can hint at their presence.

Text with zero-width spaces in memoQ using regex to highlight characters around U+200B

Those zero-width spaces can be made apparent by converting them to tags with the memoQ Regex Tagger:

The memoQ Regex Tagger can make zero-width spaces visible

Zero-width spaces tagged in memoQ

Regex Find & Replace can be used in memoQ to eliminate the zero-width spaces by using the Unicode value (\u200b) in the Find expression and nothing (empty) in the Replace field. Or simply delete the tags if there are only a few of them (if you have used the Regex Tagger. A tagging configuration like the one above can be saved and employed in a cascading filter to make all those zero-width characters immediately apparent.

OmegaT likewise offers no obvious indications of zero-width characters.

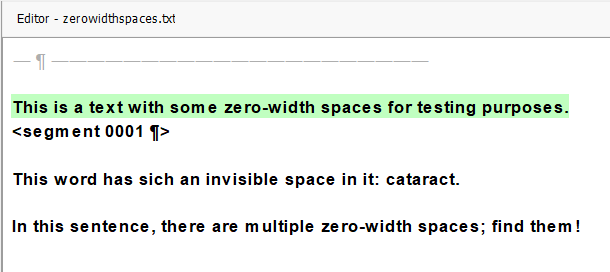

Text as seen after import to OmegaT.

The Phrase TMS makes a real hash of an imported text with zero-width spaces:

Text file imported to Phrase for automated machine translation

That’s no surprise given that I’ve found the programming of Phrase (formerly Memsource) to be sloppy since I first became acquainted with it 12 or 13 years ago.

Trados Studio displays gaps in the translation and editing grid, with the preview pane showing apparently normal text:

Trados Studio 2022 view with source text preview. Note that the zero-width spaces appear as gaps in the words in the translation grid.

I didn’t examine cases of zero-width characters in any browser-based environment other than Phrase in a default configuration.

I have encountered problems caused by zero-width spaces in numerous translation environment tools over the years, with source texts in many different formats deriving from various sources. WalkMe™ content management systems show a lot of them in translation exports I’ve seen in several formats. Older formats for MS Word (DOC) and RTF frequently have them. Macros created by the EU DGT for splitting multilingual files in translation processes caused these zero-width characters to be inserted randomly in words if versions of Microsoft Office later than 2003 were used (this caused hundreds of thousands of euros in losses by a contracted LSP because match rates in the files given to translators for work were lower than the ones used by the DGT for costing).

In short, these invisible characters can mean real trouble if they aren’t eliminated at the right point in a process. And if they are not identified, the problems they cause may go unsolved, resulting in economic damage and considerable frustration.

Development teams for some translation environments such as memoQ and OmegaT should consider explicit measures to reveal and handle these zero-width characters. As the screenshot above shows, Phrase has perhaps the most severe problems with them, and recommendations and measures should be developed to address this, beginning with the segmentation effects.

Have you had experience with problems caused by zero-width characters in your texts? If so, in what environments, and how did you deal with the trouble?

Many non-technical wordworkers who encounter such difficulties think of them like the mysteries of divine (or in this case diabolical) doings of the electronic deities which watch and rule over modern life. But these mysteries have perfectly rational explanations and solutions which generally don’t require black chickens to be sacrificed.
